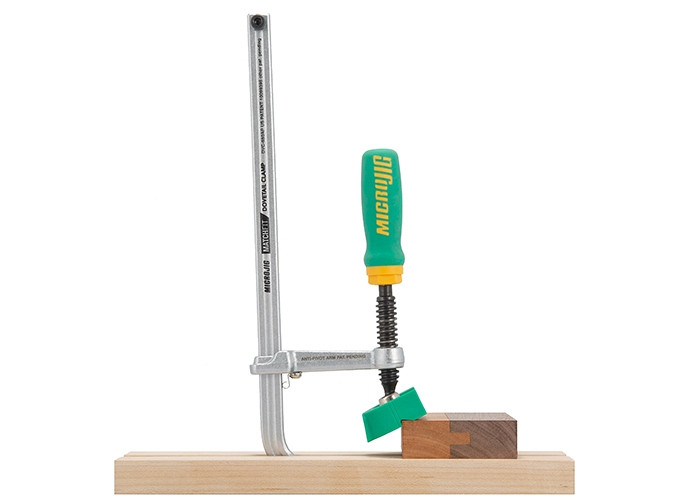

MATCHFIT Dovetail Track Clamp AP

MicroJig Matchfit Series

Dovetail Clamps for universal use in dovetail grooves

For use with the comprehensive Matchfit system, individual clamping table systems, clamping templates and other solutions can be created for safe support in the workshop.

Prednosti

• Anti-pivot technology holds the clamp arm in position - quick completion of repetitive tasks

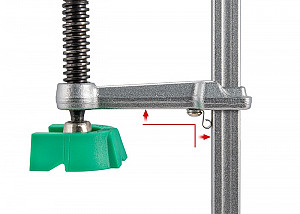

• Anti-swivel spring prevents the clamping arm from swivelling or falling down when changing workpieces
• The X-PAD supplied distributes the force of a clamp in two directions - fewer clamps are therefore required to fix the material

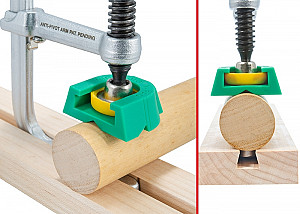

• V-groove profile offers two contact points - easy clamping of round or long workpieces
• High quality processing
• Non-slip 2-component handles
• Solid steel clamps with 14° dovetail guide
• Reversible handle for clamping "behind the clamp
• For dovetail grooves with 12.7 mm wide, 14° flank inclination & 9.5 mm depth
• No profile rails necessary

Tehnični podatki

• span width: 216 mm
• clamping force: approx. 270 kg

Dobava

• 1x MATCHFIT Dovetail Track Clamp
